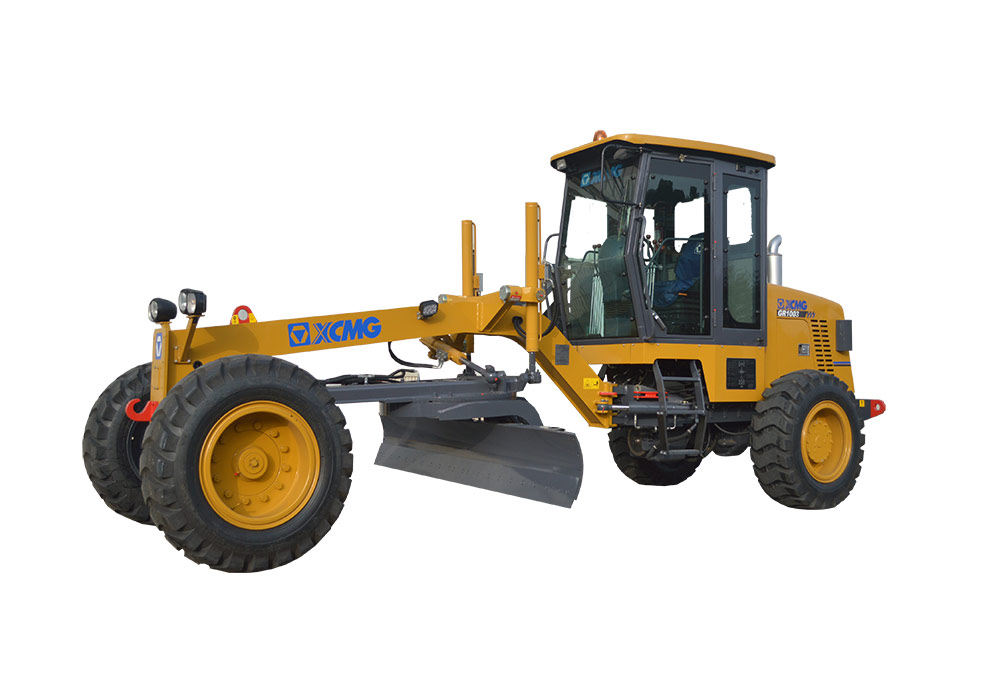

The XCMG The GR1003 motor grader is mainly used forground leveling, ditching.slope scraping. buldozing, scarification, snow removalfor large areas such as highway, alrports. farmlands etc.
| Model | XCMG GR1003 |
| Engine model | WP4.1 |
| Rated power/speed | 74kw@2200rpm |
| Machine dimension | 7230 × 2375 ×3150 |
| Machine weight | 7500 kg |
| Drive speed, forward(km/h) | 5/8/11/17/24/38 |
| Drive speed, reverse(km/h) | 5/11/24 |
| Traction force f=0.75 | ≥39kN |
| Maximum gradeability | ≥25% |
| Minimum turning radius | 6 m |
| Blade Length x Height | 3480 ×450 mm |
| Emission | EU Stage III |
