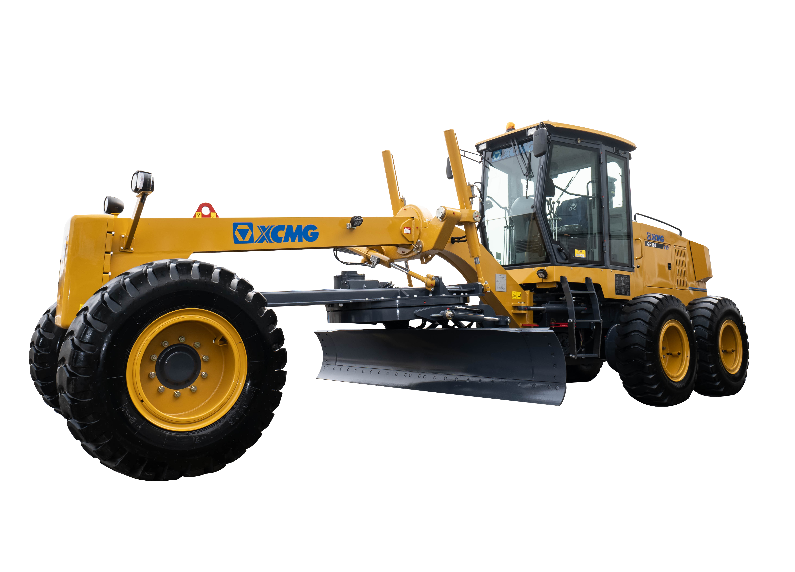

The XCMG GR180 motor grader is mainly used for ground leveling, ditching, slope scraping, buldozing, scarification, snow removal forlarge areas such as highway, airports, farmlands etc.
| Model | XCMG GR180 |
| Engine model | 6BTA5.9-C190-II |
| Rated power/speed | 142kw@2200rpm |
| Machine dimension | 8900 × 2625 ×3420 |
| Machine weight | 15400 kg |
| Drive speed, forward(km/h) | 5/8/11/19/23/38 |
| Drive speed, reverse(km/h) | 5/11/23 |
| Traction force f=0.75 | ≥79 kN |
| Maximum gradeability | ≥25% |
| Minimum turning radius | 7.3 m |
| Blade Length x Height | 3660 ×610 mm |
| Emission | EU Stage II |
