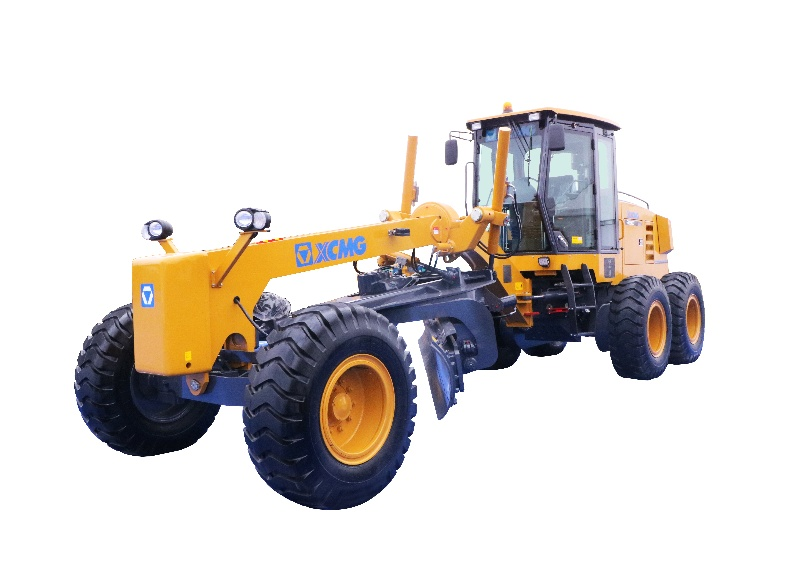

The XCMG The GR2403 grader is mainly used for large-area ground leveling. trenching, slope scraping. buldozing. ripping, snow removal and other works on the high-ways, airports, farmlands etc.
| Model | XCMG GR2403 |
| Engine model | QSB6.7 |
| Rated power/speed | 178kw@2000rpm |
| Machine dimension | 8970 × 2625 ×3420(standard) |
| Machine weight | 17000 kg |
| Drive speed, forward(km/h) | 5/8/11/19/23/38 |
| Drive speed, reverse(km/h) | 5/11/23 |
| Traction force f=0.75 | ≥87kN |
| Maximum gradeability | ≥25% |
| Minimum turning radius | 7.3 m |
| Blade Length x Height | 3965 ×610 mm |
| Emission | EU Stage III |
