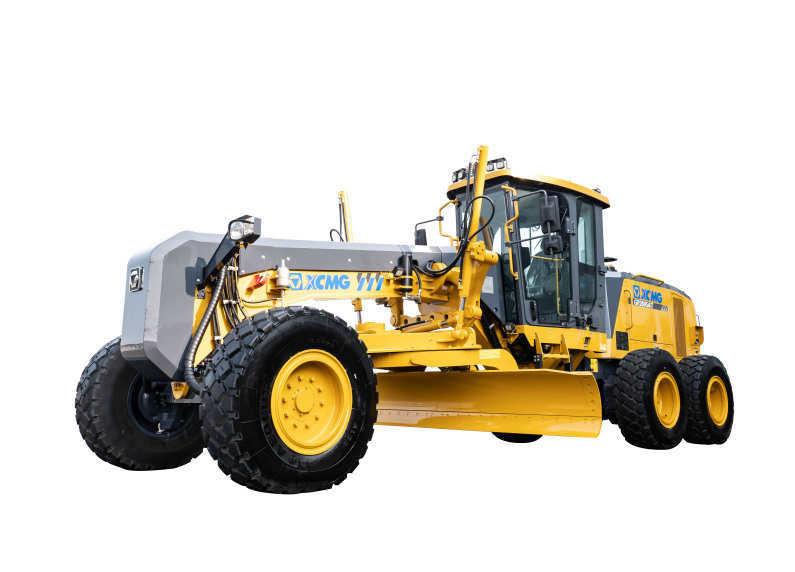

The XCMG GR2605AT motor grader with 260HP power, high strength of the whole machine structuralparts and sufficient power, is a heaw-duty motor grader specially developed for high-load working.
| Model | XCMG GR2605AT | |
| Engine model | QSB8.9 | SC9DK260G3 |
| Rated power/speed | 194kw@2200rpm | 192kw@2200rpm |
| Machine dimension | 9680 × 2750×3500 | 9680 × 2750×3500 |
| Machine weight | 20000 kg | 19500 |
| Drive speed, forward(km/h) | 5/9/14/22/34/48 | 5/9/14/22/34/48 |
| Drive speed, reverse(km/h) | 6/15/35 | 6/15/35 |
| Traction force f=0.75 | ≥129 kN | ≥135kN |
| Maximum gradeability | ≥25% | ≥25% |
| Minimum turning radius | 7.8 m | 7.8 |
| Blade Length x Height | 3660 ×610 mm | 3965×610mm |
| Emission | EU Stage III | EU Stage III |
