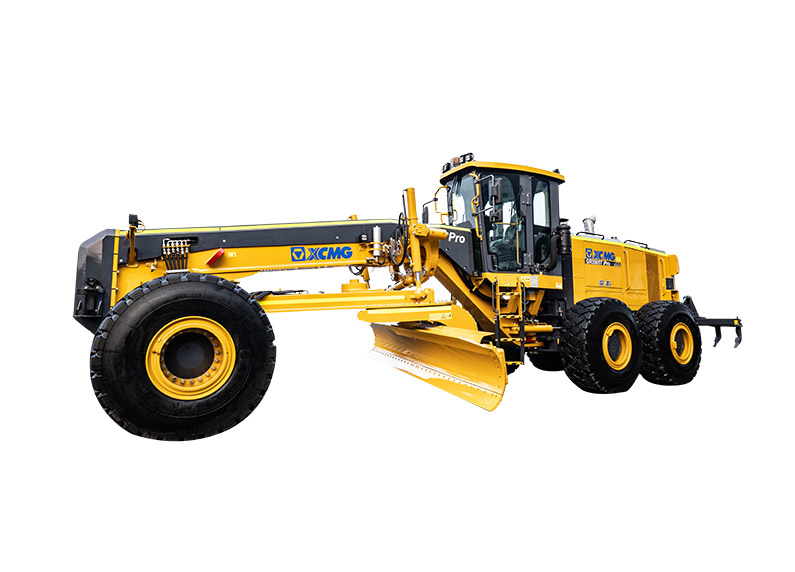

The XCMG GR3505T Pro motor grader is a constructionmachine used in open pit mines for haul roadshaping and leveling operations.
| Model | XCMG GR3505T PRO |
| Engine model | QSM11 |
| Rated power/speed | 261kw@2100rpm |
| Machine dimension | 11320 × 3400 ×4100 |
| Machine weight | 32000 kg |
| Drive speed, forward(km/h) | 5/8.5/13/20/30/45 |
| Drive speed, reverse(km/h) | 5/13/30 |
| Traction force f=0.75 | ≥160 kN |
| Maximum gradeability | ≥30% |
| Minimum turning radius | 9 .6m |
| Blade Length x Height | 4877 ×686 mm |
| Emission | EU Stage III |
